Kilt

Modern Forms Smart Fans FAQs and Information

Specifications

MODEL & SIZE	COLOR TEMP & CRI	FINISH

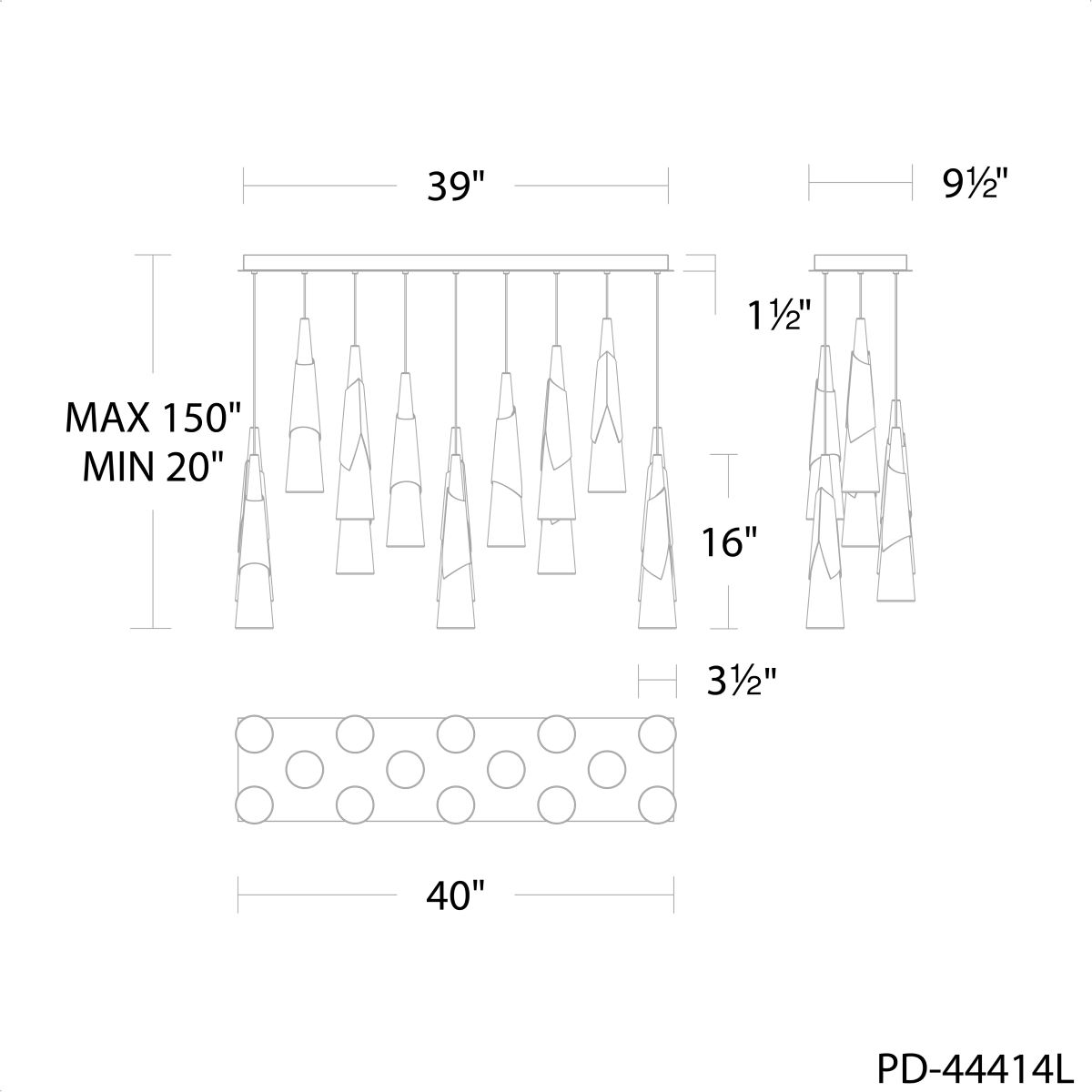

PD-44414L-40"-14 Lights	2700K/3000K/3500K/4000K-90	AB-Aged Brass

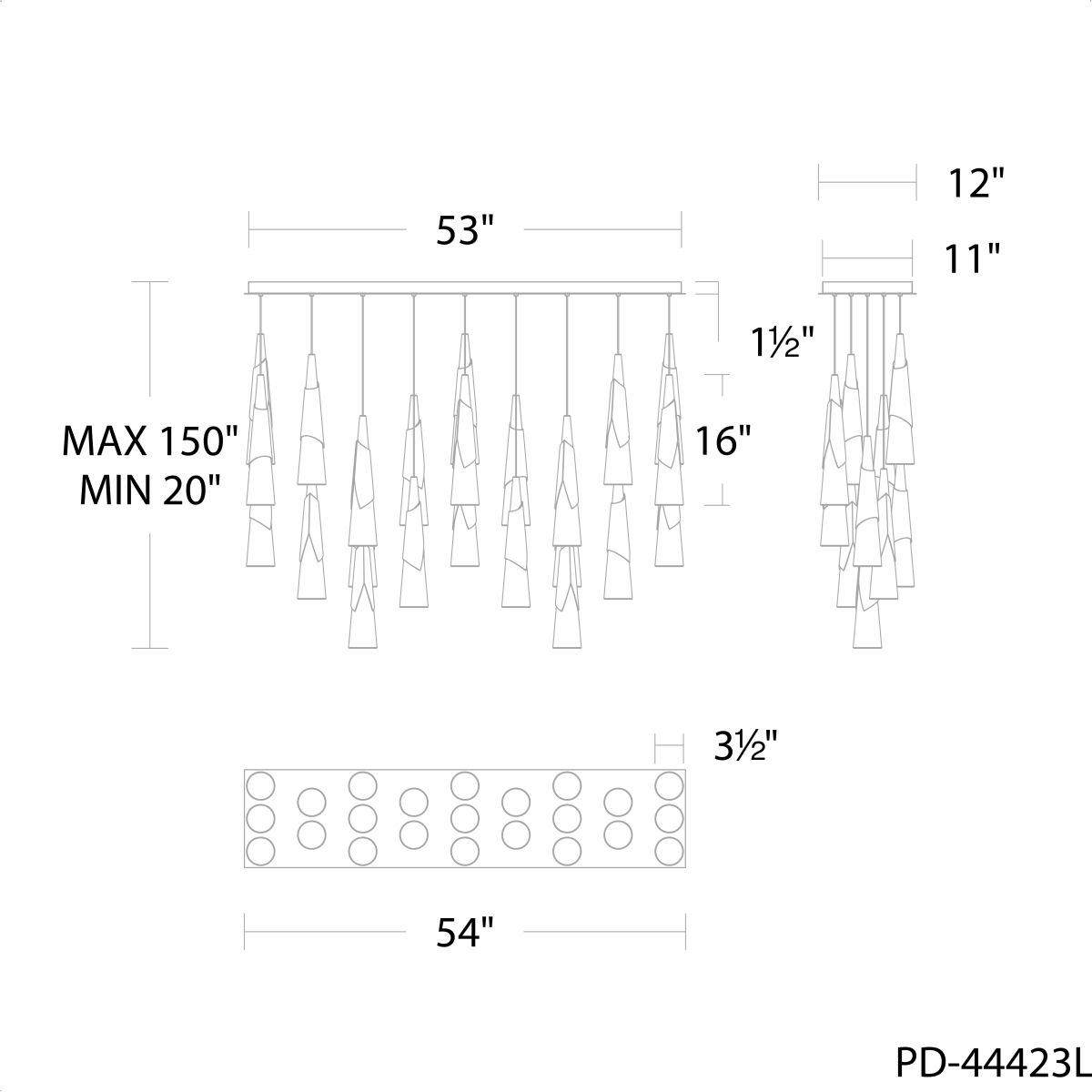

PD-44423L-54"-23 Lights		BK-Black

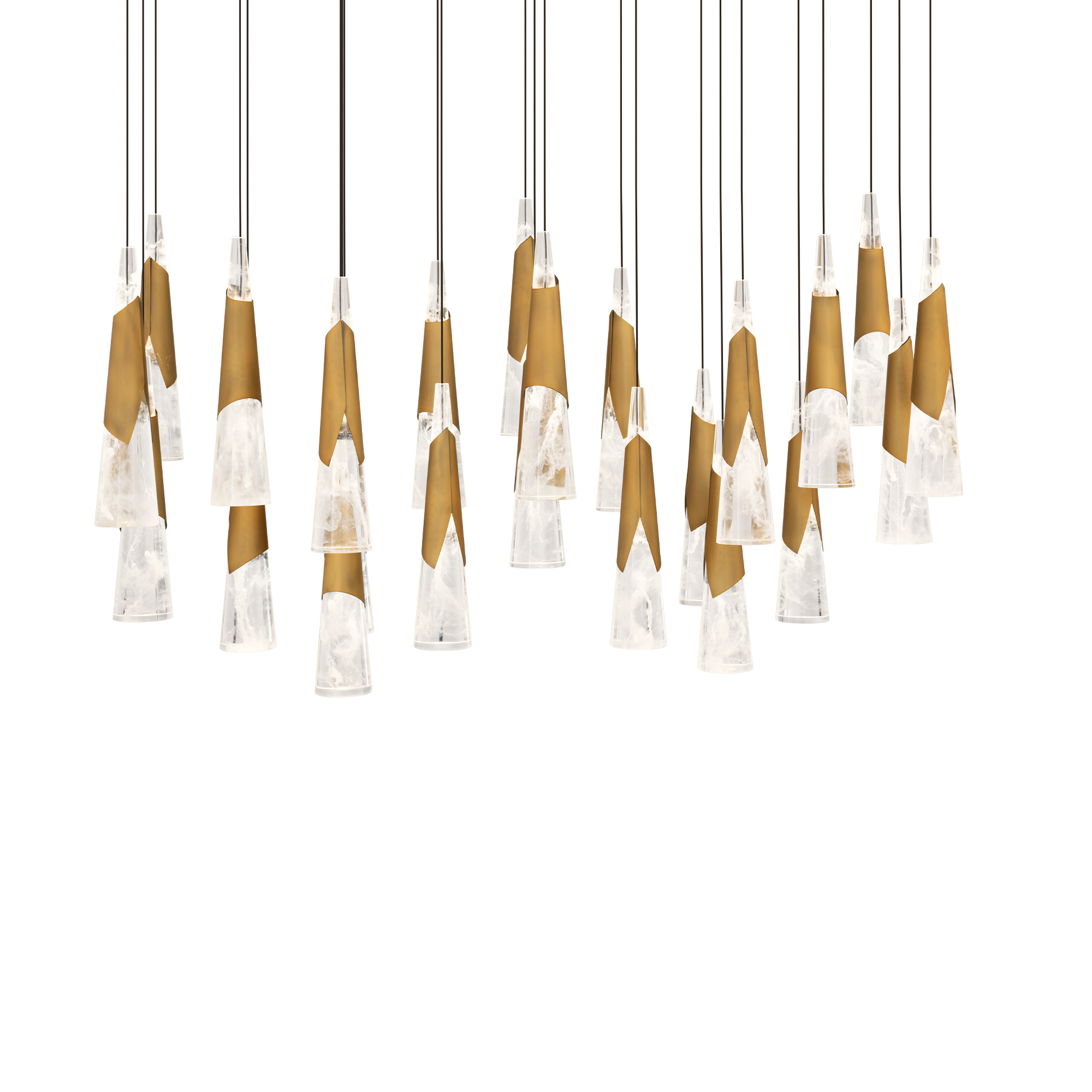

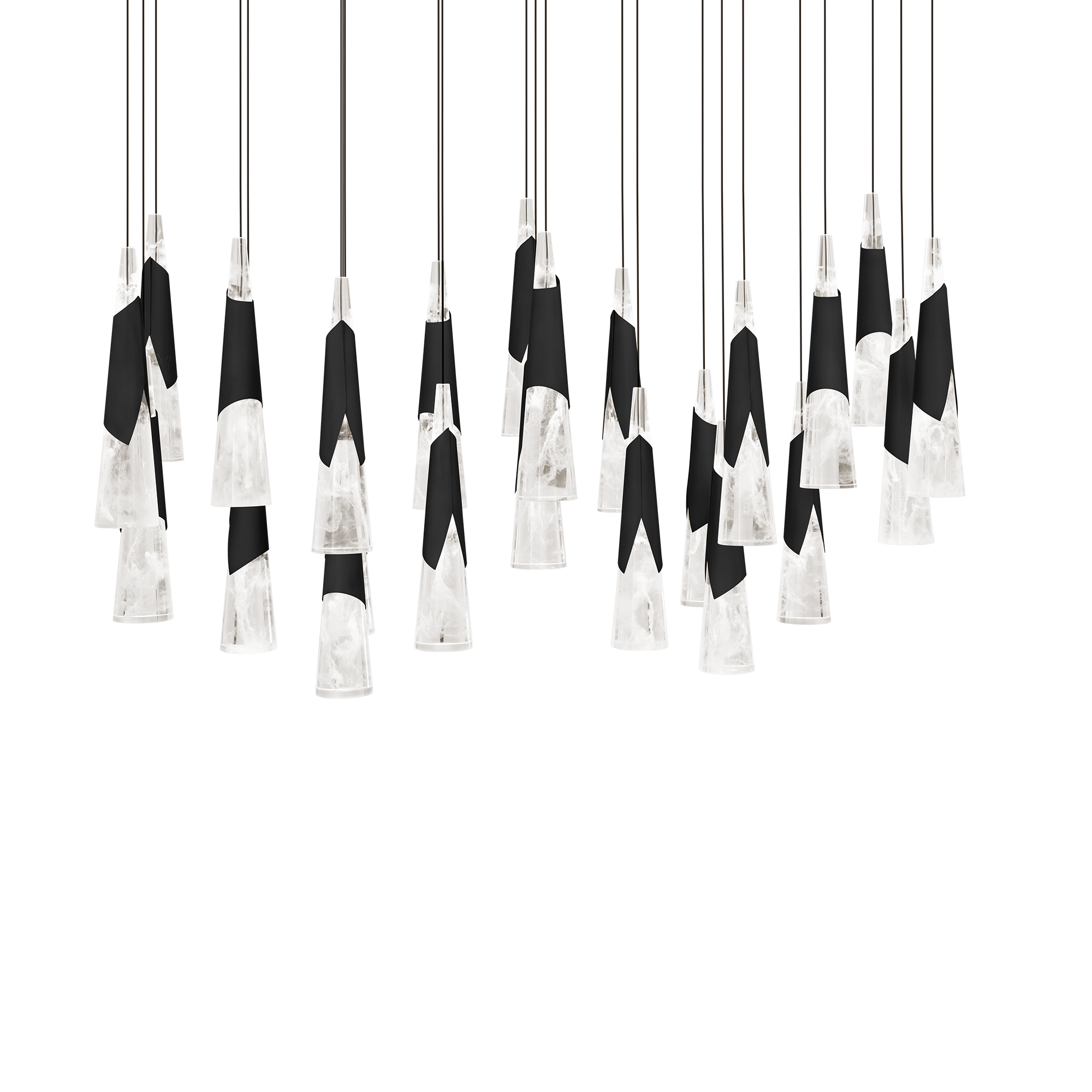

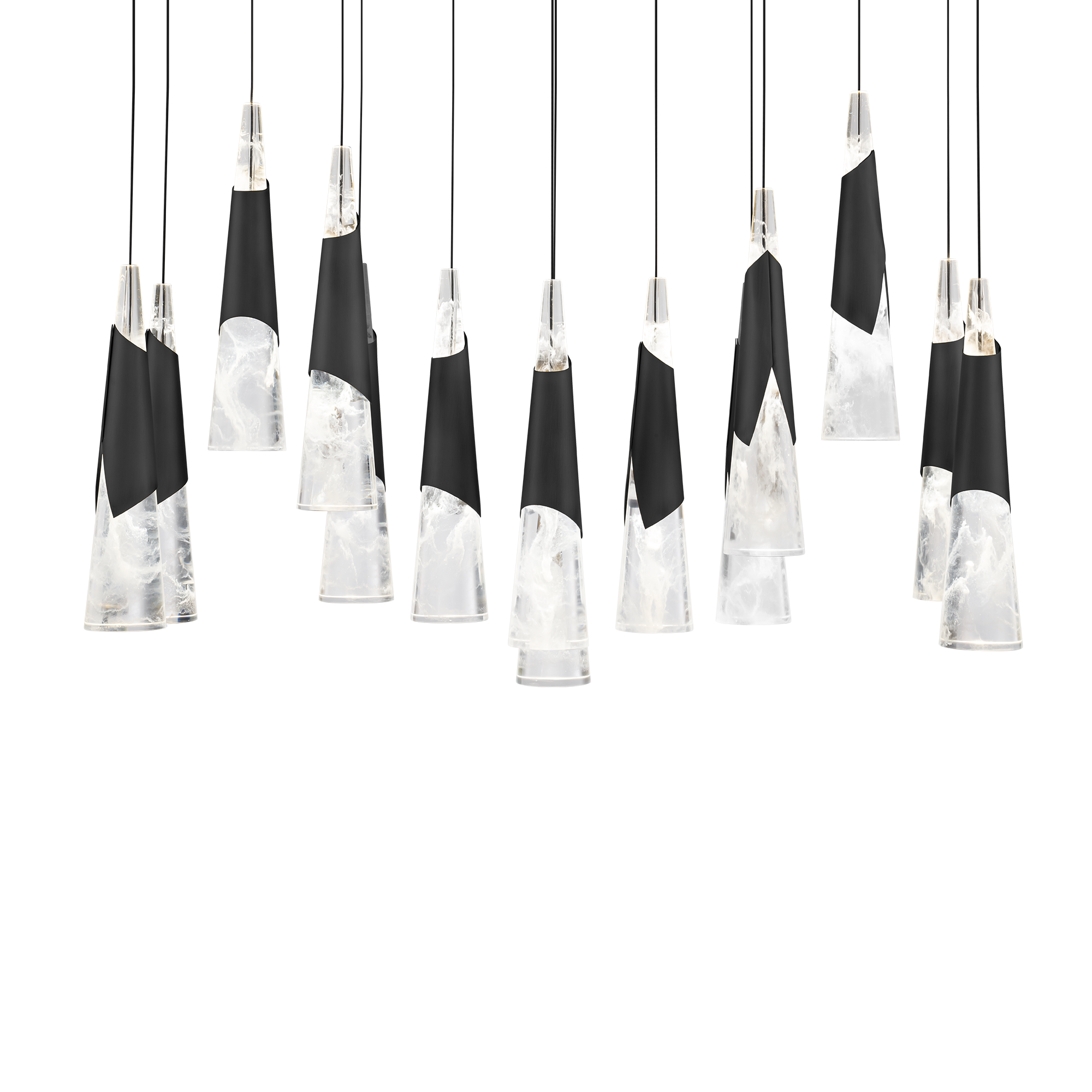

Hazy acrylic cones combine with crisp metal skirts on these pendants, which are installed on one canopy, creating an artful statement and delivering ample lighting to spaces throughout a home or business.

Features
CCT
Certifications

CRI: 90
Input: 120-277V, 50/60Hz
ELV Dimming: 100-5%
0-10V Dimming: 100-5%
TRIAC Dimming: 100-5%
Rated Life: 50000 Hours
Artisan crafted hazy cloud acrylic
Each unique piece lends itself to variations in milkiness
Thin powered aircraft cables provide an ultra clean look for adjustable suspension height
Built in color temperature adjustability. Switch from 2700K/3000K/3500K/4000K
NEC CODE (314.24) requires that ceiling outlet boxes in the U.S. support up to 50 lbs.
This fixture in the 14 and 23 light format exceeds 50 lbs. and must be installed using a U.L. listed outlet box approved for up to 75 lbs. and 125 lbs. or supported independently of the outlet box
Driver concealed within the canopy
Dimming: ELV, 0-10V, TRIAC
